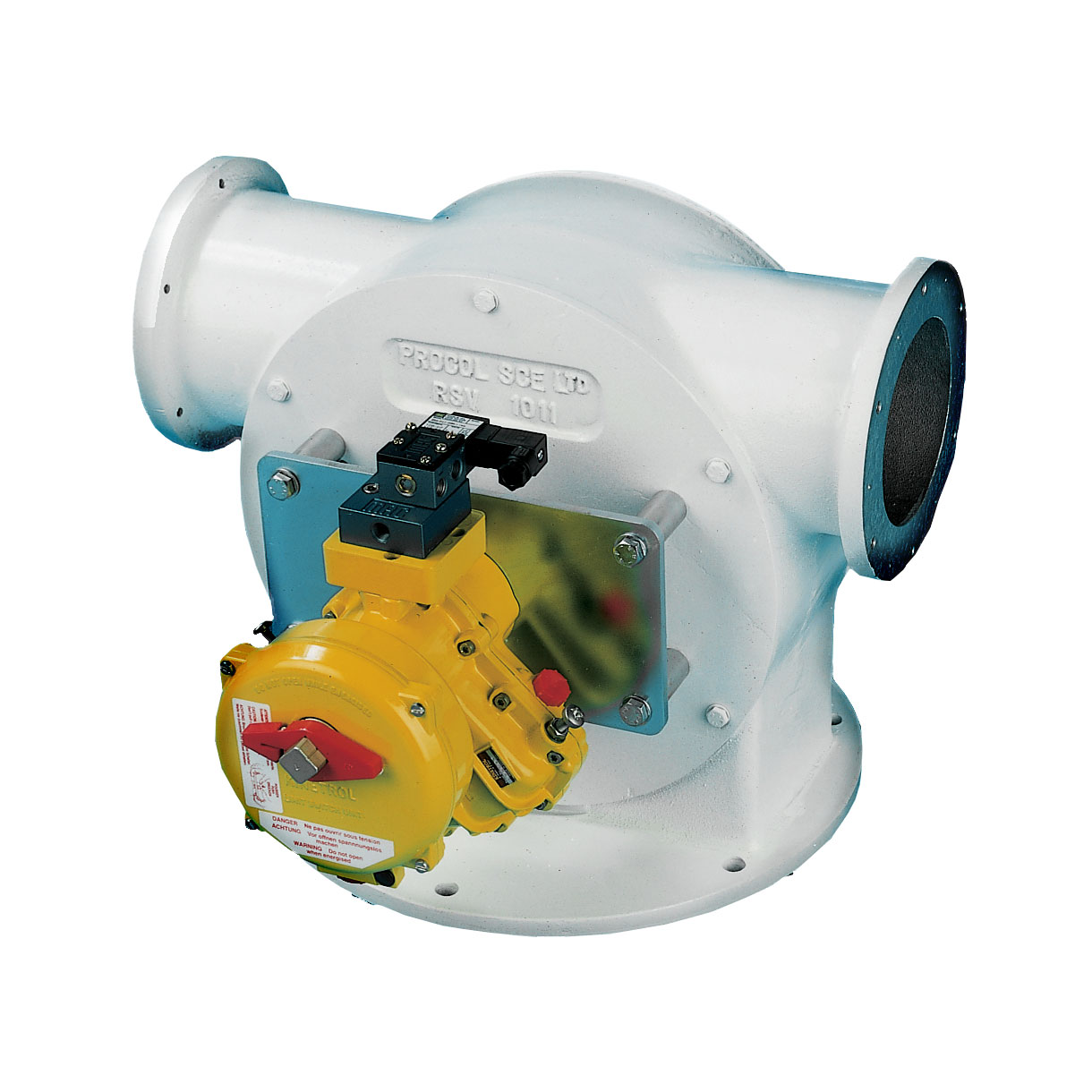

Scale Valve: Type Rotary Scale Valve

Rotary scale valves are designed for in-flow product diversion directly from pneumatic conveying systems into bulk storage vessels and weigh hoppers. They are suitable for handling powders and granules across a wide range of industrial applications.

The valve features a precision-machined cast iron body and endplates, with a cast iron vane supported by bearings housed within the endplates. Operation is provided by a direct-coupled pneumatic actuator for reliable and repeatable performance.

Valves are supplied complete with indicator switches and a solenoid-operated spring-return air control valve. Two body sizes are available, with connecting tube adaptors allowing use in conveying systems ranging from 1.5 to 6 inches in diameter.

The valve can operate with product flow in either direction and is available with various solenoid voltages. Other design variations are not offered as standard.
